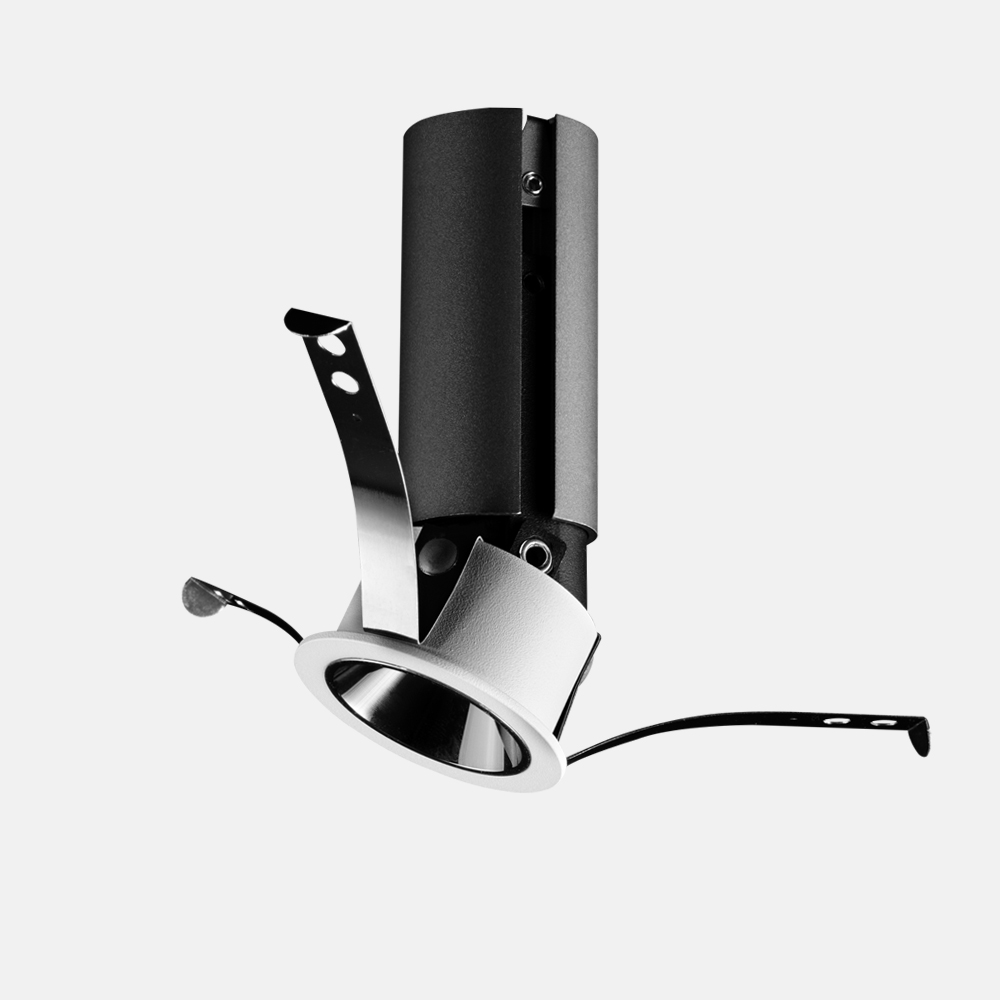

01.228A01000
Power：5W
Installation method：Recessed
Cut out：φ35mm
Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee
Frequency：50/60Hz
LED chip：COB
Light efficiency：42 lm/W
CCT：2700K/3000K/3500K/4000K
CRI：≥90
SDCM：＜3
Adjustibility： 360° Rotation | 30° Tilting
Light distribution：Direct
UGR：＜10
Beam angle：18°/25°/32°
Ingress protection：IP20
Material：Aluminum
Operating temperature：-25°C~50°C
Rated life hours：35,000h~50,000h LM80
White + Gun black
-

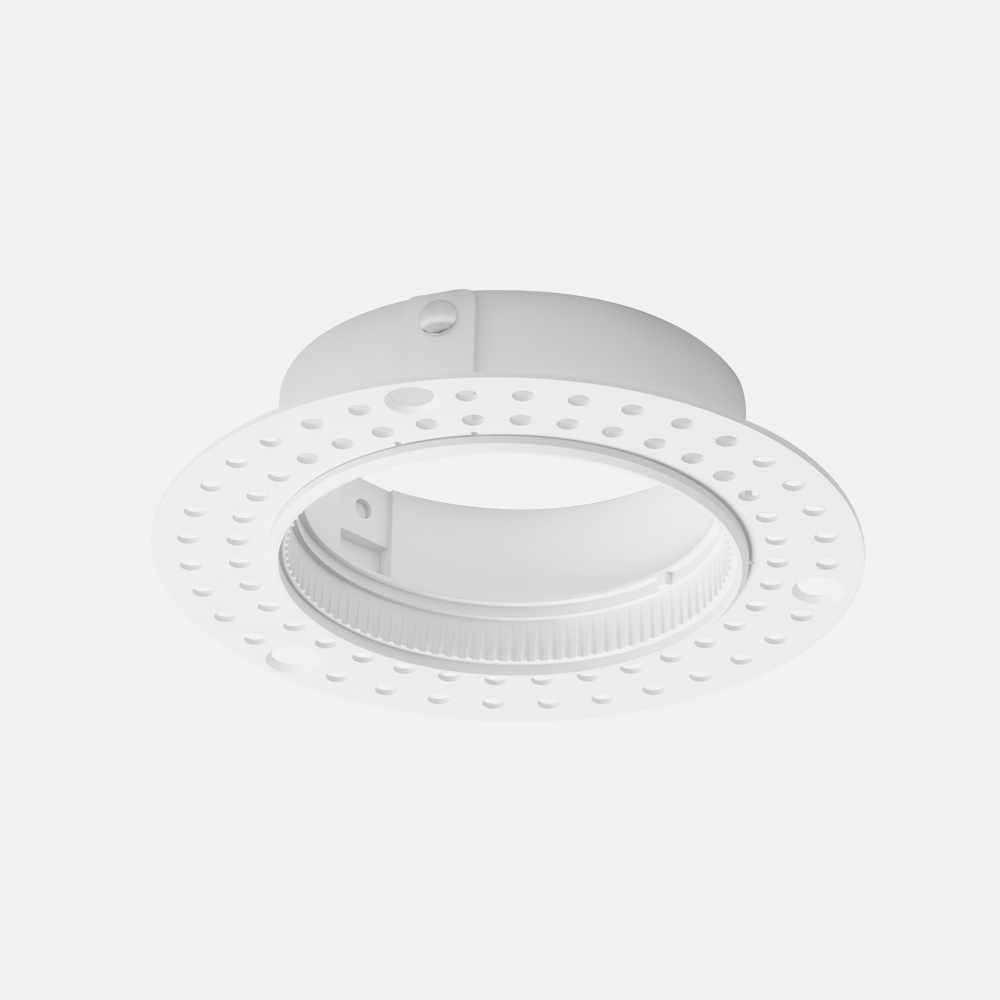

Accessories

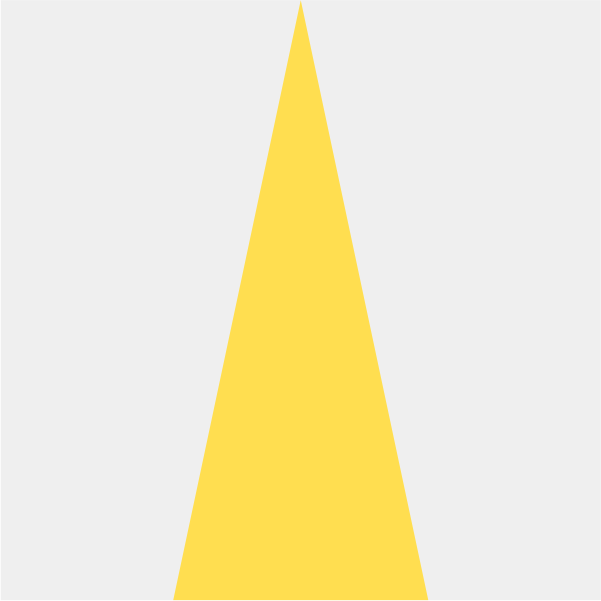

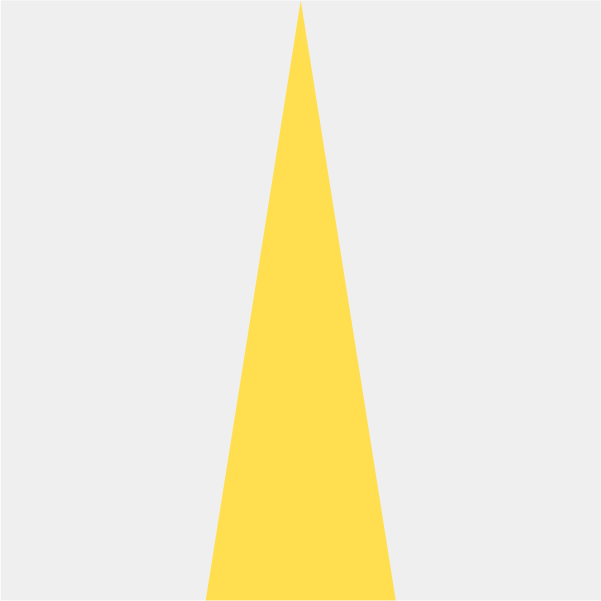

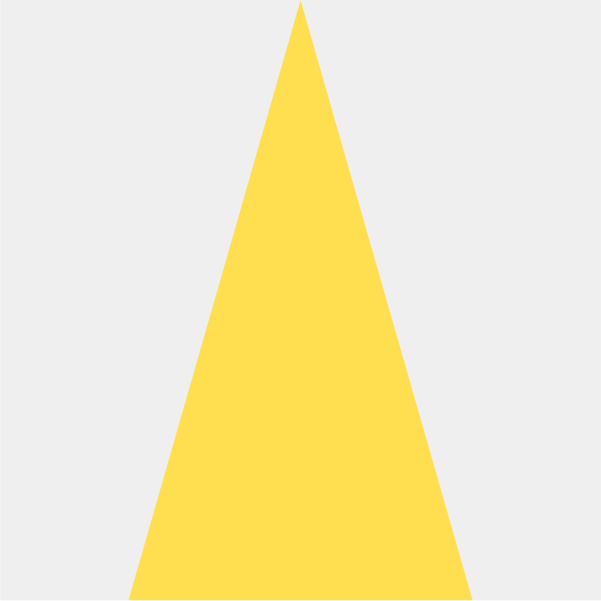

18°
25°
32°
Applicable Instructions for 18° Illumination
This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
