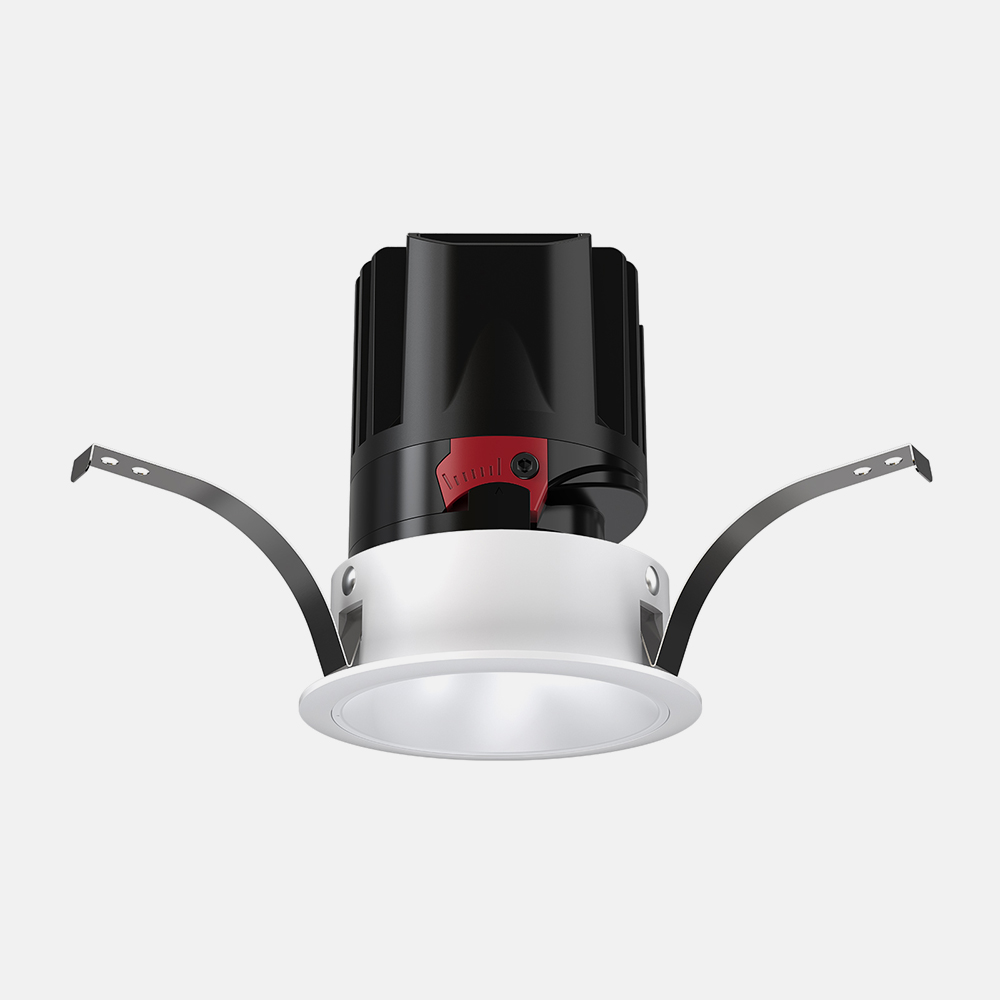

Apollo
01.208A02R

Apollo has the mechanical characteristics of 25° vertical and 355° horizontal

adjustable angle , which makes the beam focus more freely and accurately in

space . Apollo series is flexible , providing a new lighting solution for indoor space .

All parts can be reassembled into a perfect lamp structure .

/ Products / Recessed ceiling light / Apollo
Specification

01.208A02R00

Power：8W/10W/12W/15W

Installation method：Recessed

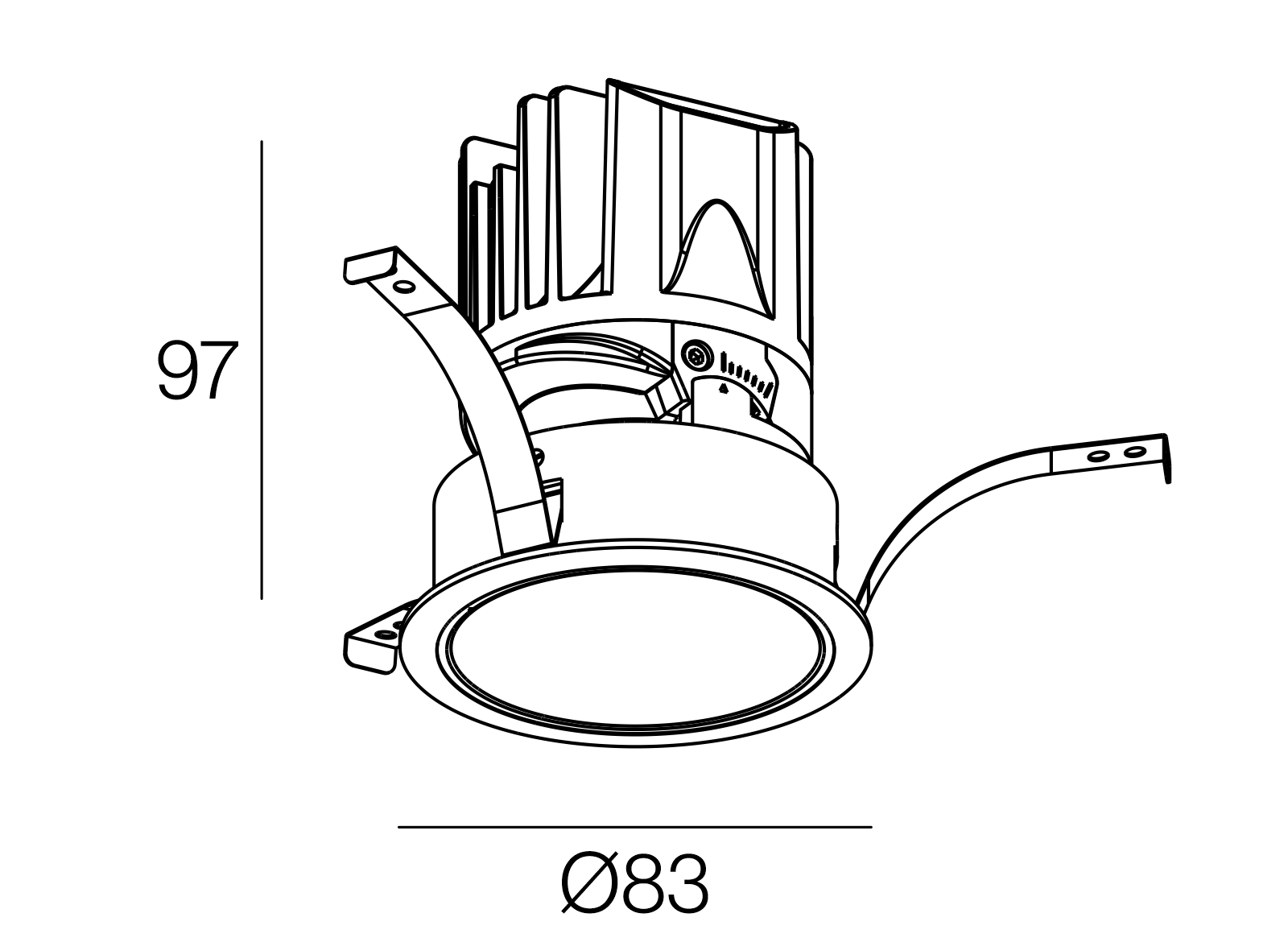

Cut out：φ75mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：70 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：＞90

SDCM：＜3

Adjustibility：355° Rotation | 30° Tilting

Light distribution：Direct

UGR：＜10

Beam angle：8°/18°/28°/38°/50°

Ingress protection：IP20 / IP65

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

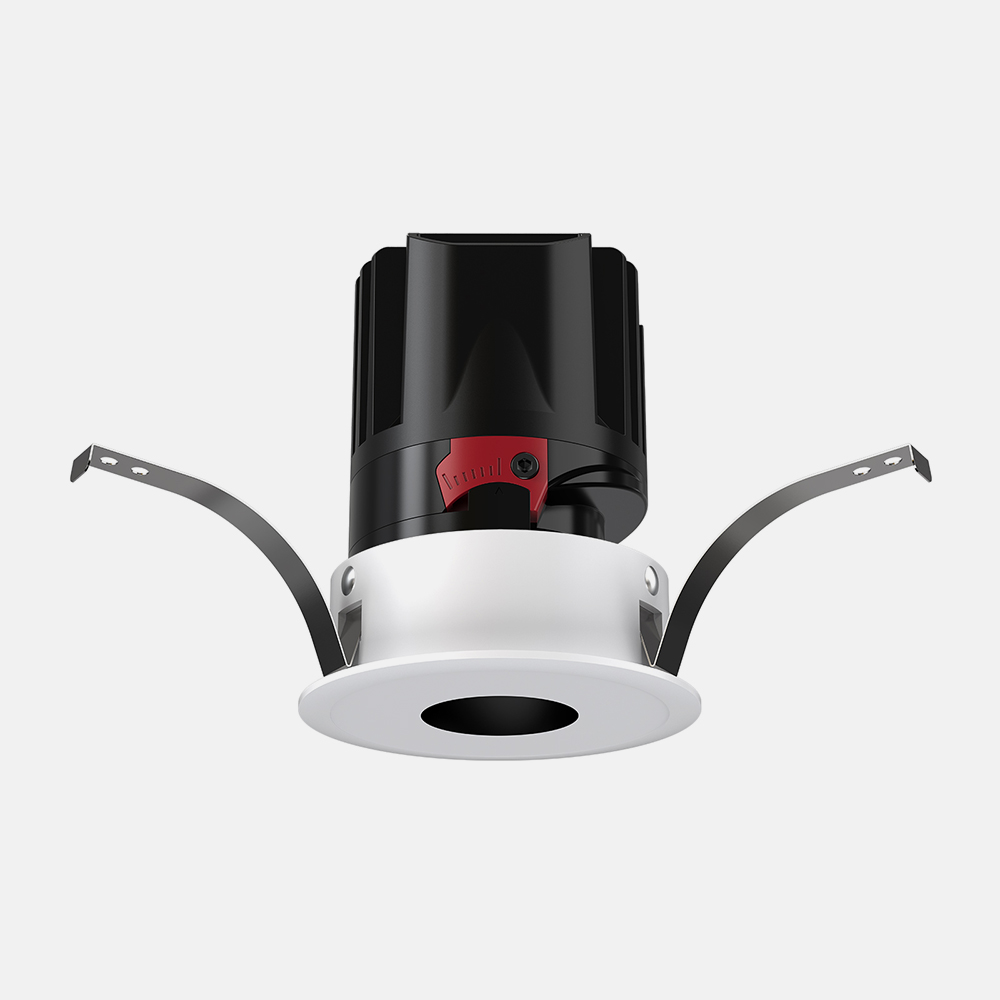

White

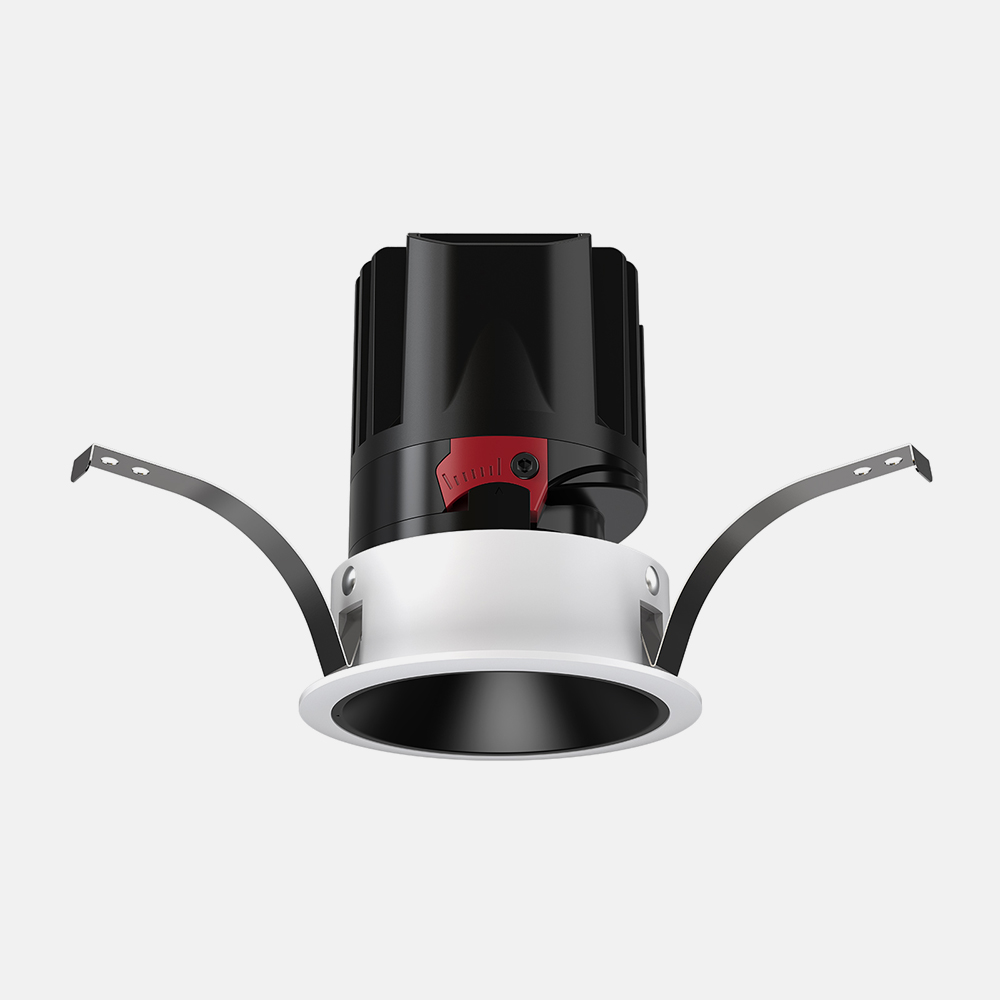

Black

Round White

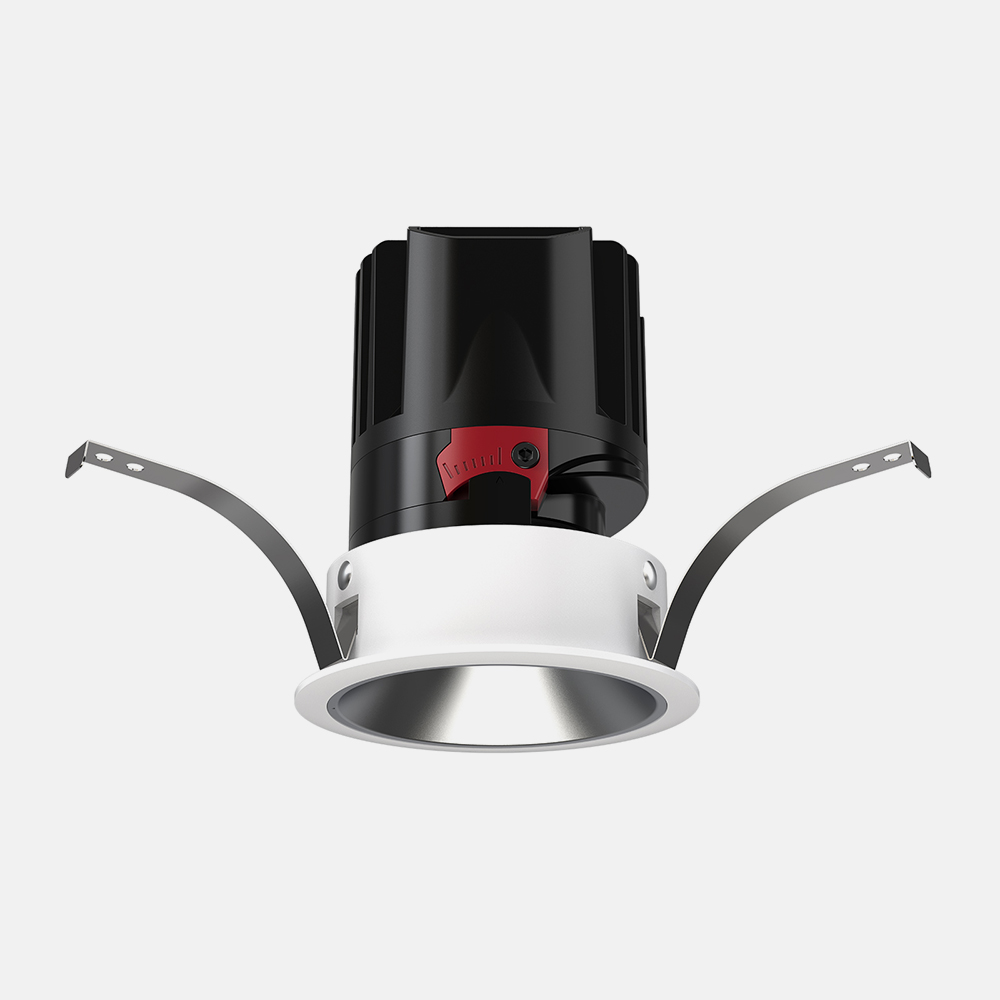

Bright Silver

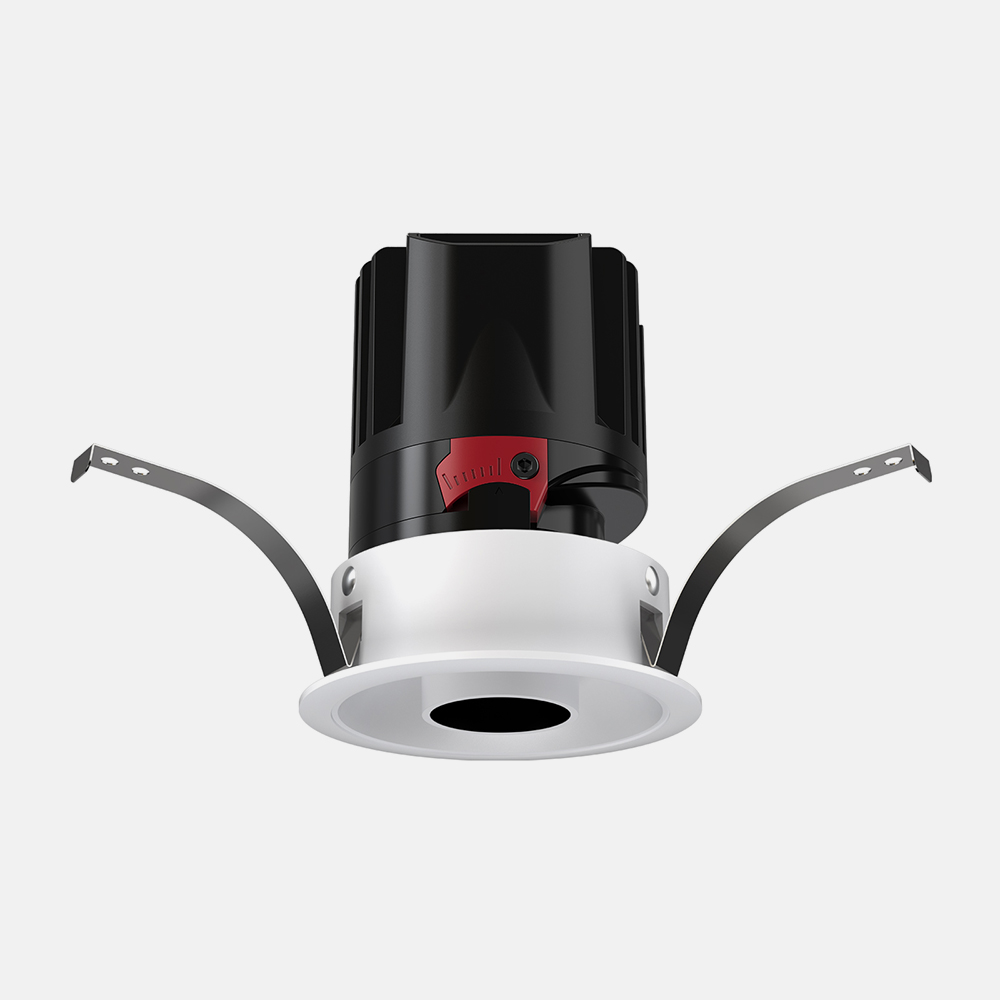

Snoot White

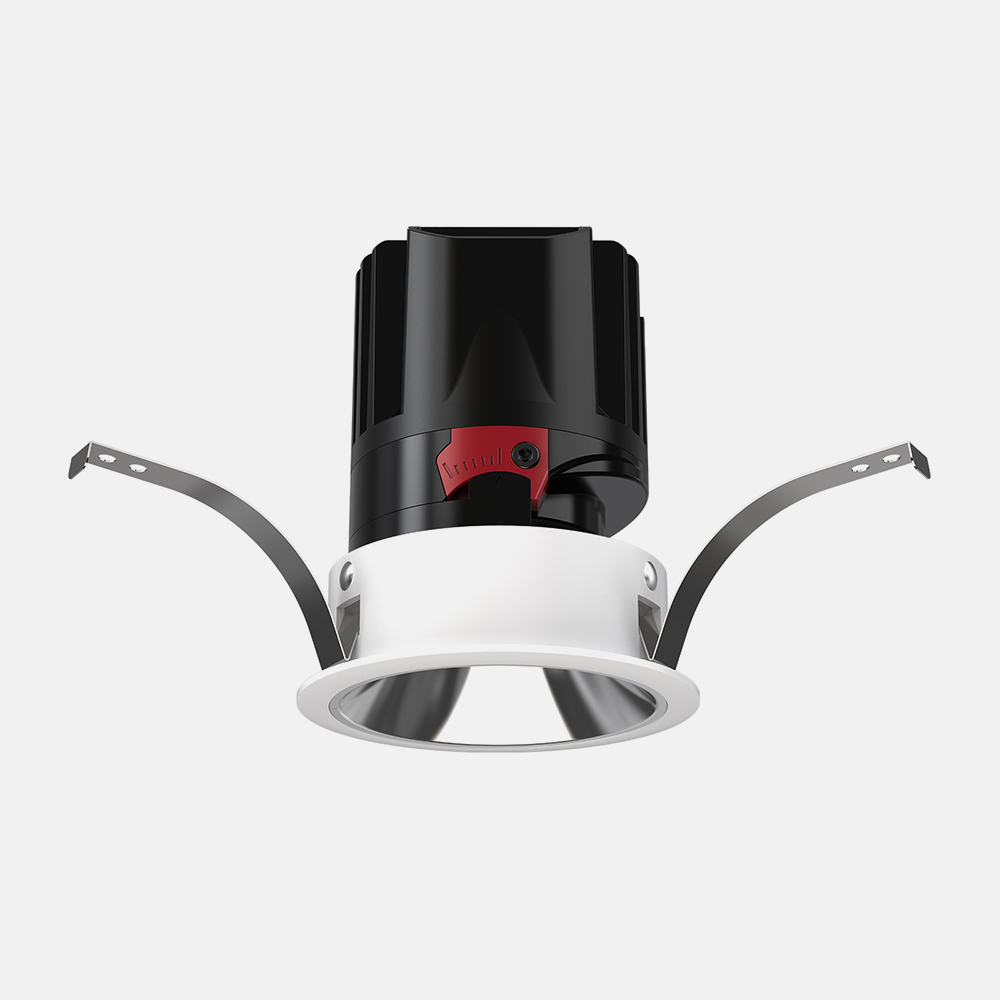

Sand Silver

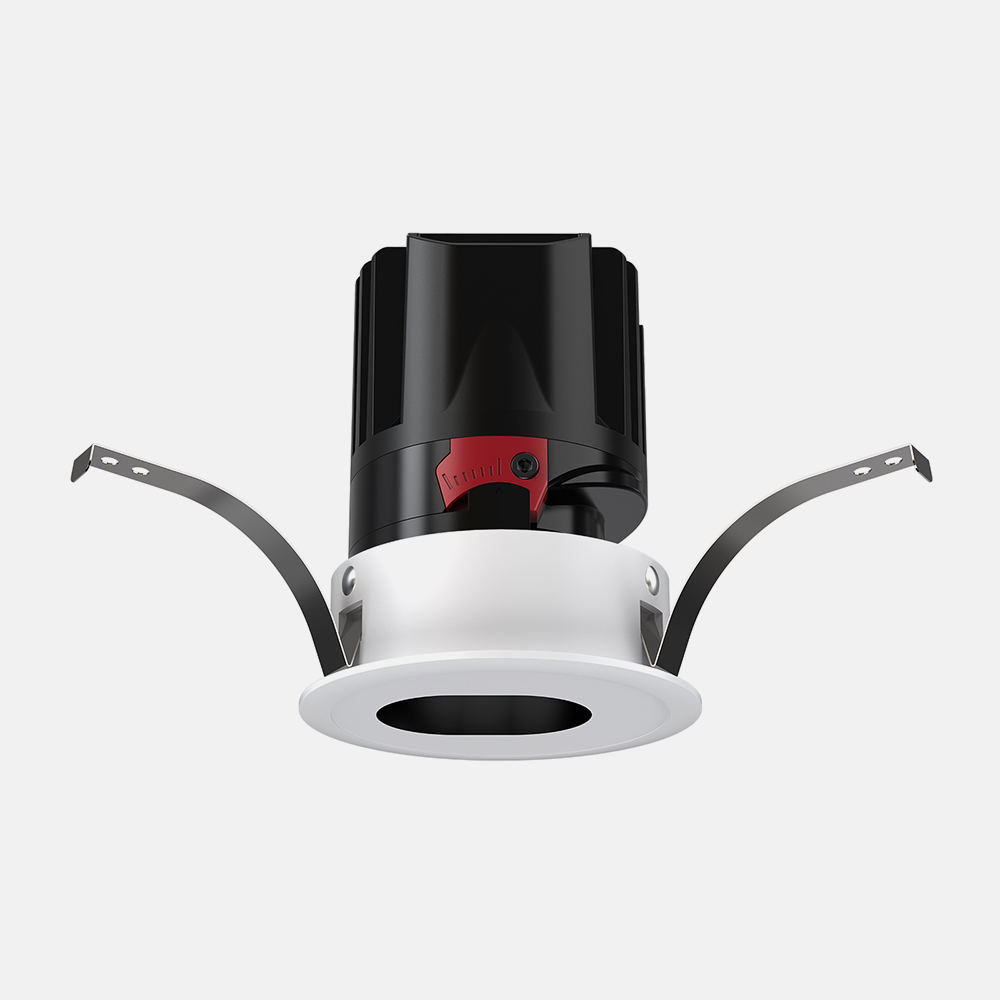

Oval Black

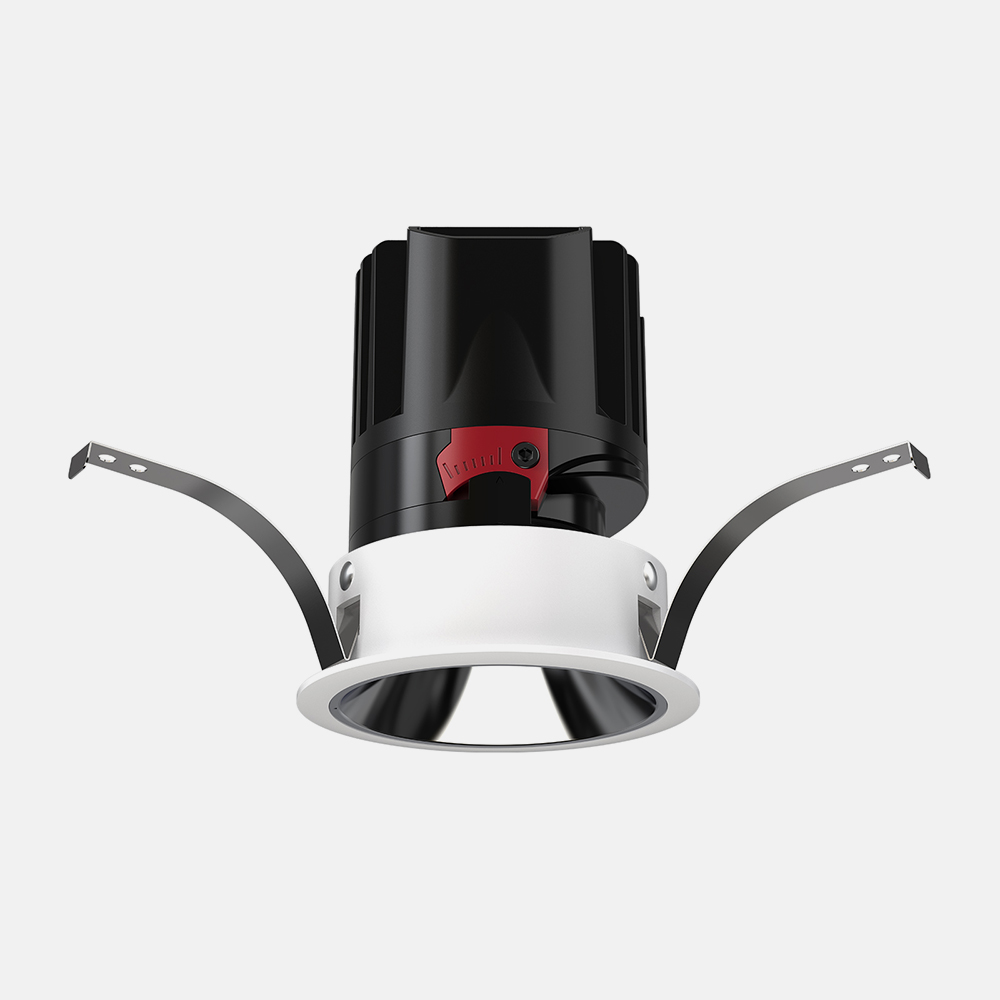

Gun Black

Scenes
Beam angle

8°

18°

28°

38°

50°

Applicable Instructions for 8° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
