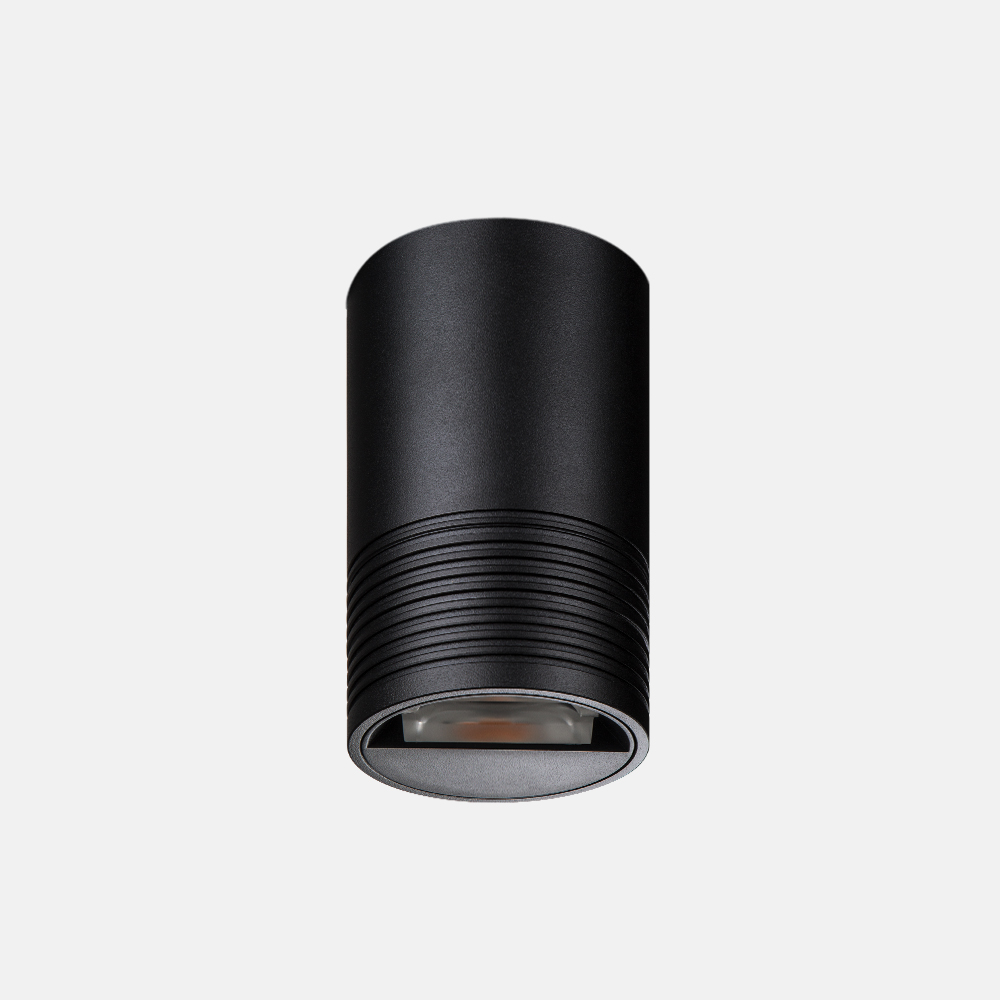

Smile
03.188C01000

Precise focusing , uniform lighting , no light spot ,

beautiful large light arc , depth anti dazzle,

adjustable angle , creating high-quality lamps.

Specification

03.188C01000

Power:8W/10W

Installation method:Recessed

Options:Non-dim,  Phase dim

Frequency:50/60Hz

LED chip:COB

Light efficiency:63 lm/W

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility: No

Light distribution:Direct

UGR:<19

Beam angle:Wallwasher

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

Scenes
Beam angle

Applicable Instructions for Wallwasher Illumination



This is an angle suitable for basic lighting,
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Lattice01.01A03R
This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
