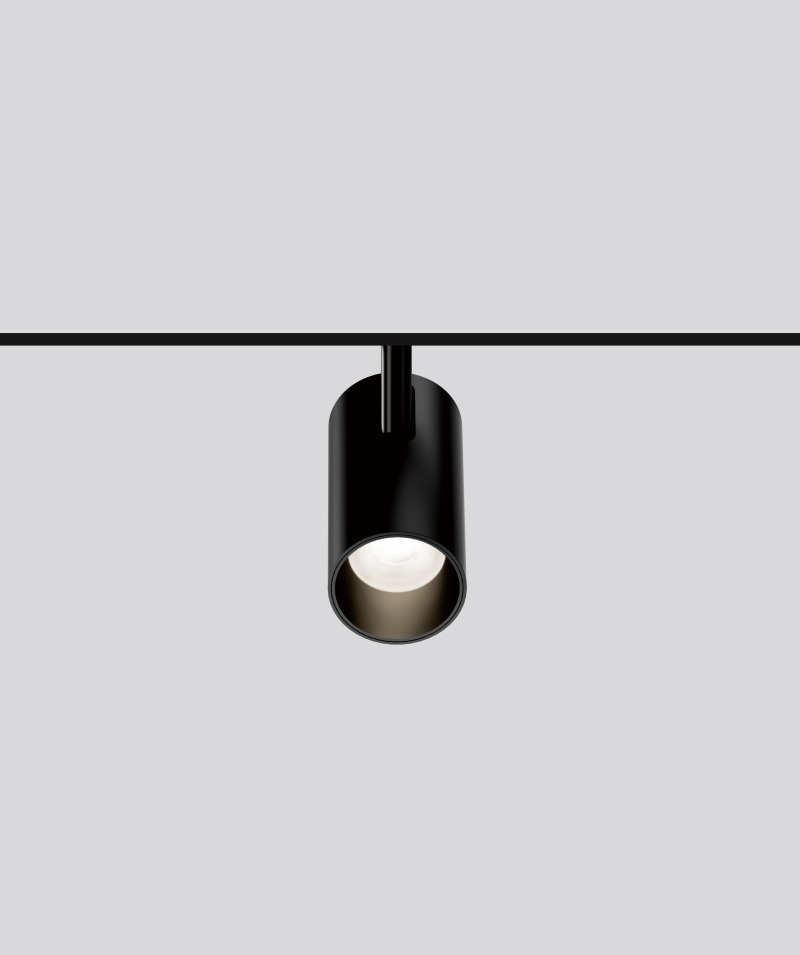

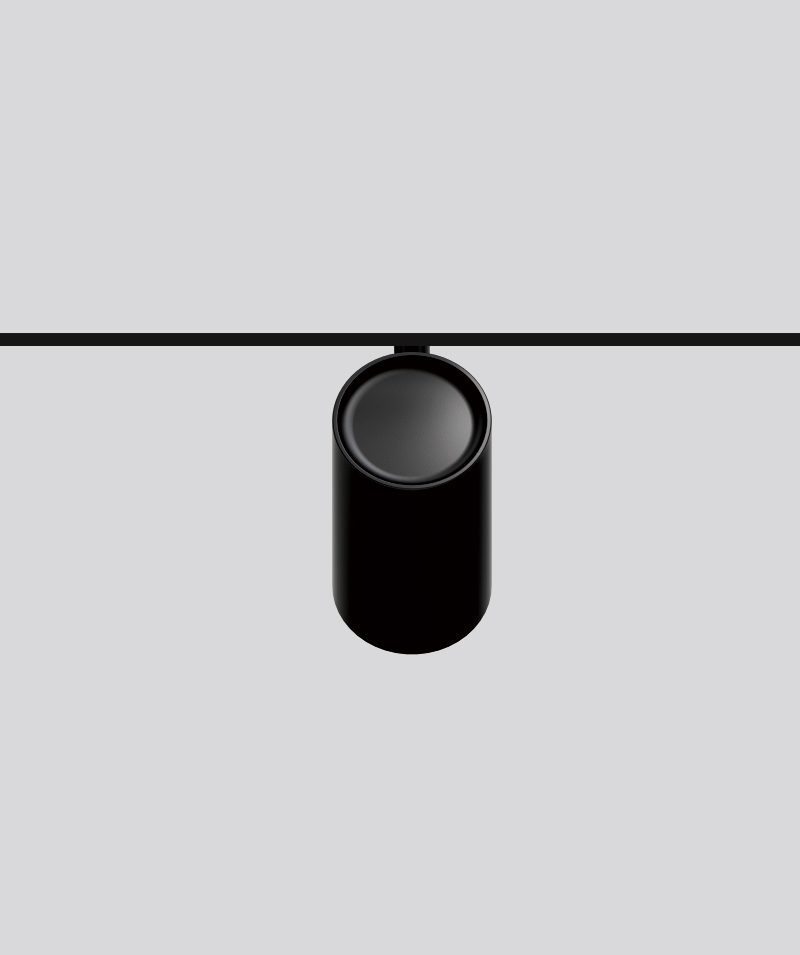

Pan
17.027A01000

Smooth curve design, the design is simple, with precise light distribution. When used with track mounting, it provides more accurate lighting, adapting better to the environment.

Specification

17.027A01000

Power:  4W

Installation method:  Micro Track

Options:  PWM,  DALI 2,  CASAMBI

Frequency:  50/60Hz

LED chip:  COB

Light efficiency:  128 lm/W

CCT:  2700K/3000K/3500K/4000K

CRI:  >90

SDCM:  <3

Adjustibility:  335° Rotation | 90° Tilting

Light distribution:  Direct

Beam angle:  24°/32°/38°/50°

Ingress protection:  IP20

Material:  Aluminum

Operating temperature:  -25°C~50°C

Rated life hours:  35,000h~50,000h  LM80

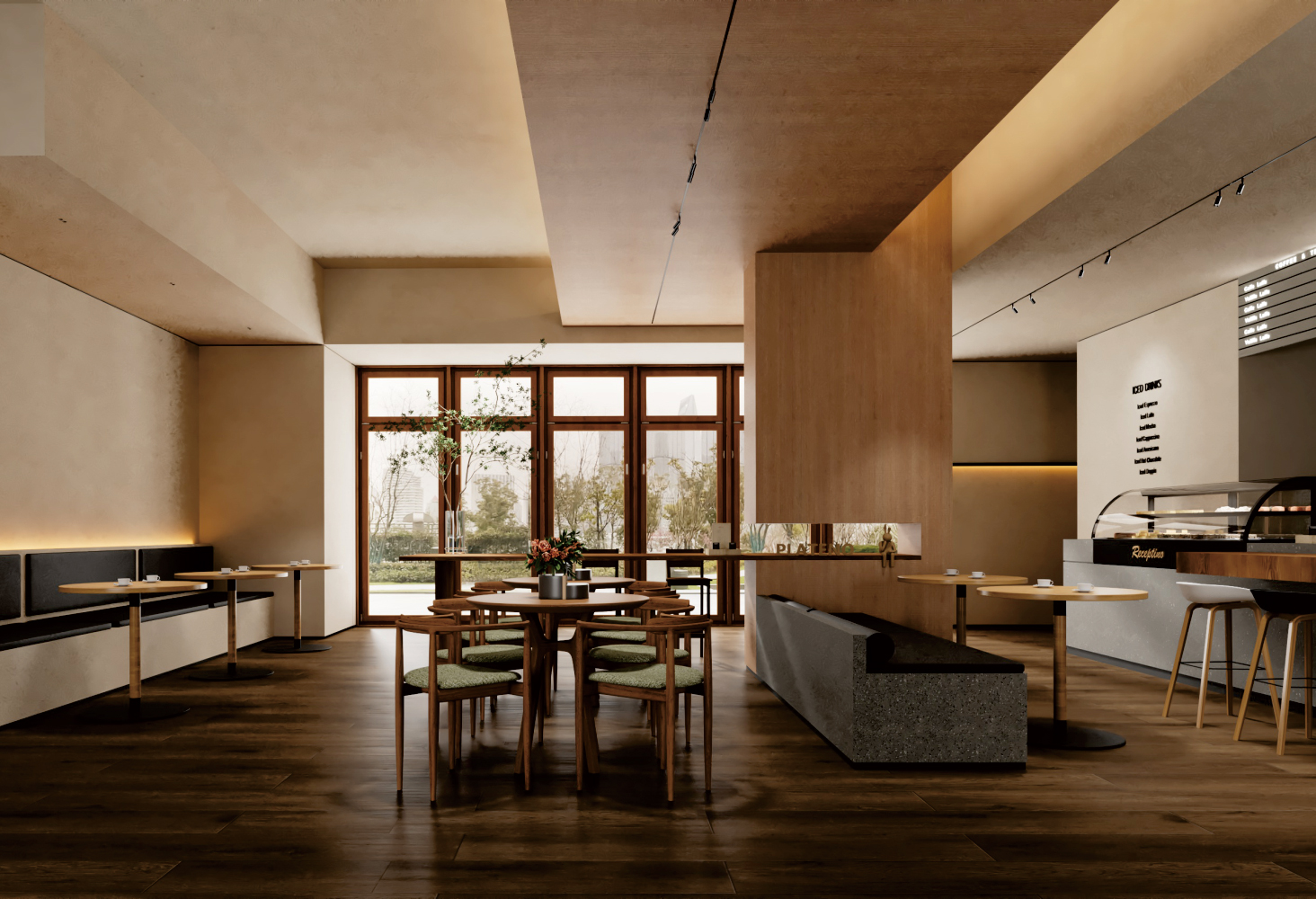

Scenes
Beam angle
Filter products
Lattice01.01A03R
This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
