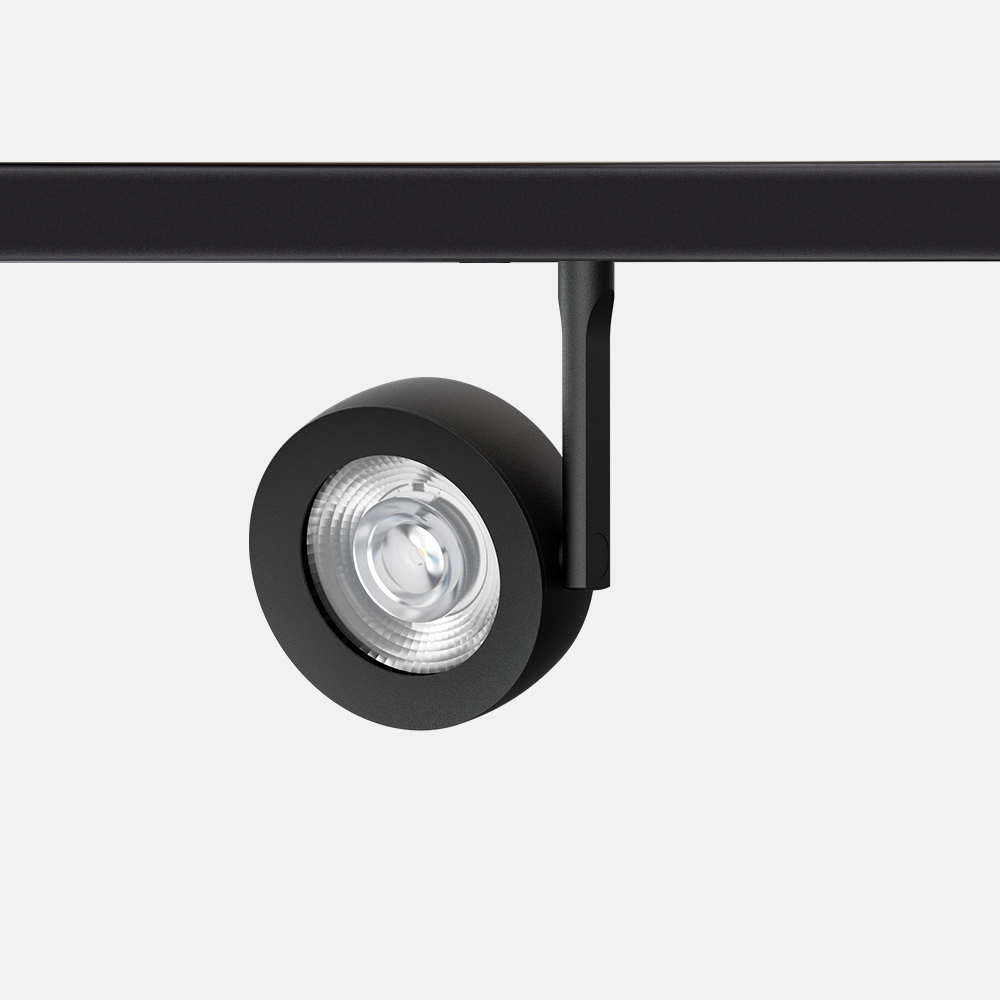

TO
07.005C01000
Magnetic lighting system as a new generation of lighting solutions, through the track layout consistent with the decoration style, lamps in the form of modules, convenient disassembly, flexible movement and other features of free combination. It not only attention to both the key lighting and basic lighting functions. Thoroughly change before need to cut hole, wiring and other troublesome installation way, totally accord with the trend of current minimalism style popularity.
/ Products / Mini Track light / TO
Specification

07.005C01000

Power：20W

Installation method：Mini Track

Options：Non-dim,  0/1-10V,  DALI,  Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：111 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：365° Rotation | 355° Tilting

Light distribution：Direct

Beam angle：15°/25°/36°/60°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Black

Scenes
Beam angle

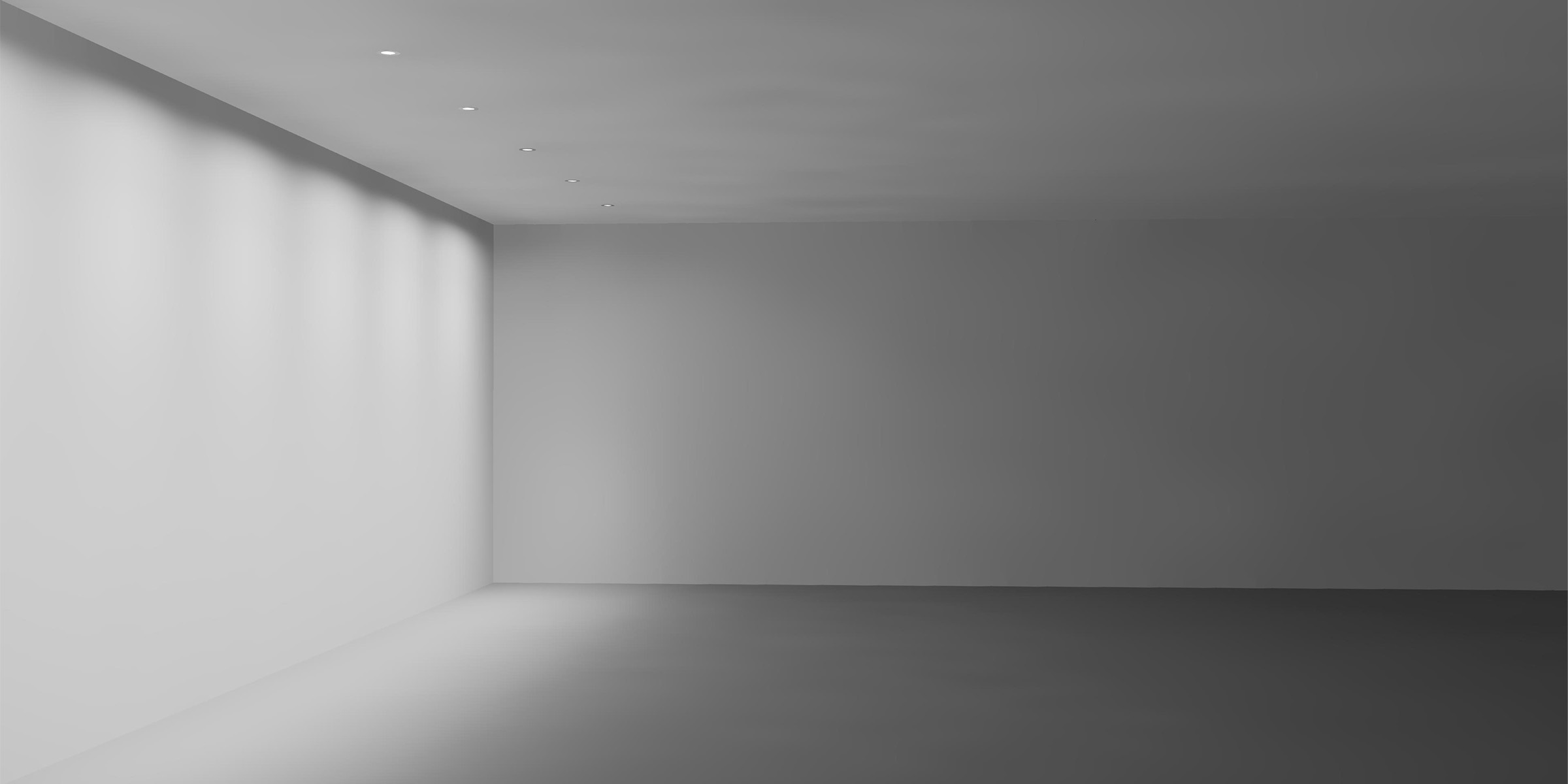

Wallwasher

Applicable Instructions for Wallwasher Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Contact Us

Factory Add:

No.13 Lianbao Road,Shengfeng Community,

Xiaolan Town, Zhongshan City.

Tel:

+8676022389158
+86760 22382108

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
