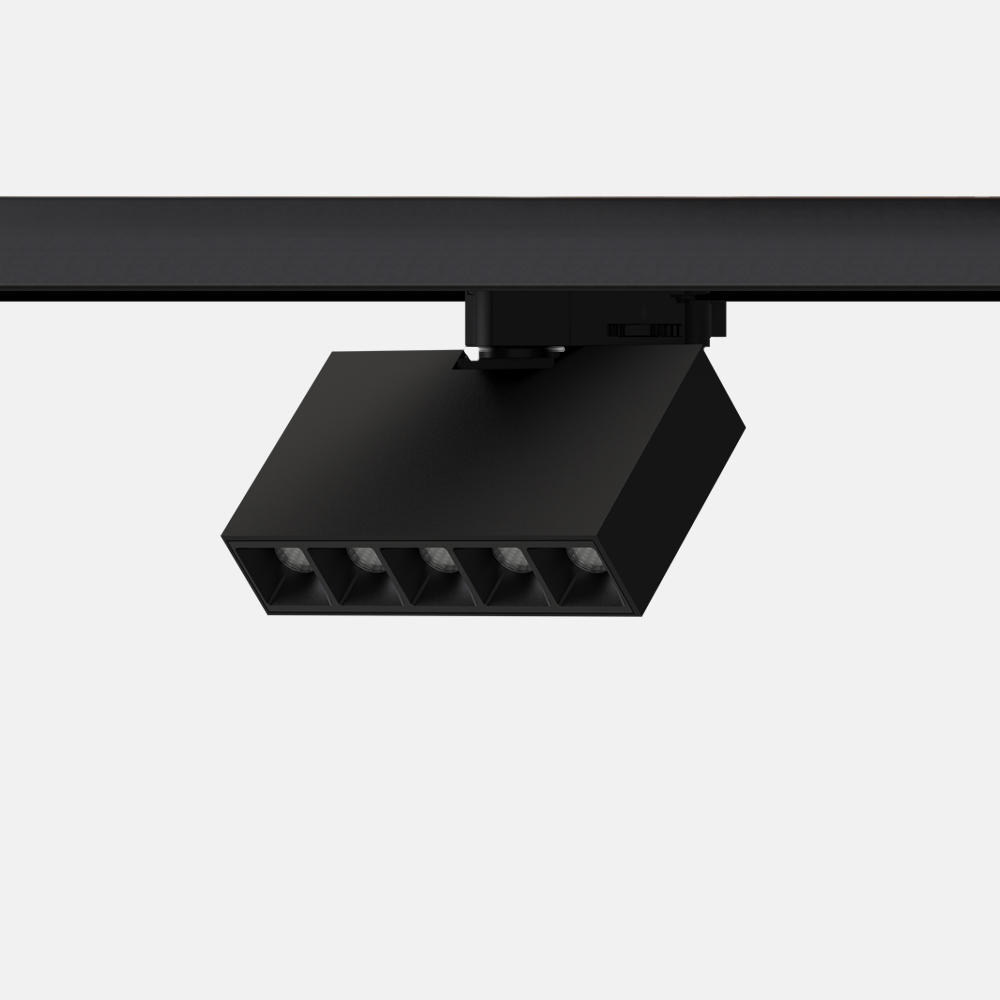

LATTICE
02.180E05000

Lattice delivers high performance and outstanding visual comfort.

This is because of the special anti-glare lenses and the low glare value UGA<16 and color rendering RA>90 of the product itself.

Lattice is usually used for basic lighting and important lighting in exhibition venues.

It can meet the lighting needs of various projects.

It has three beam angles and multiple wireless adjustment methods such

As BLE,TRIAC and DALI.


/ Products / Track light / Lattice

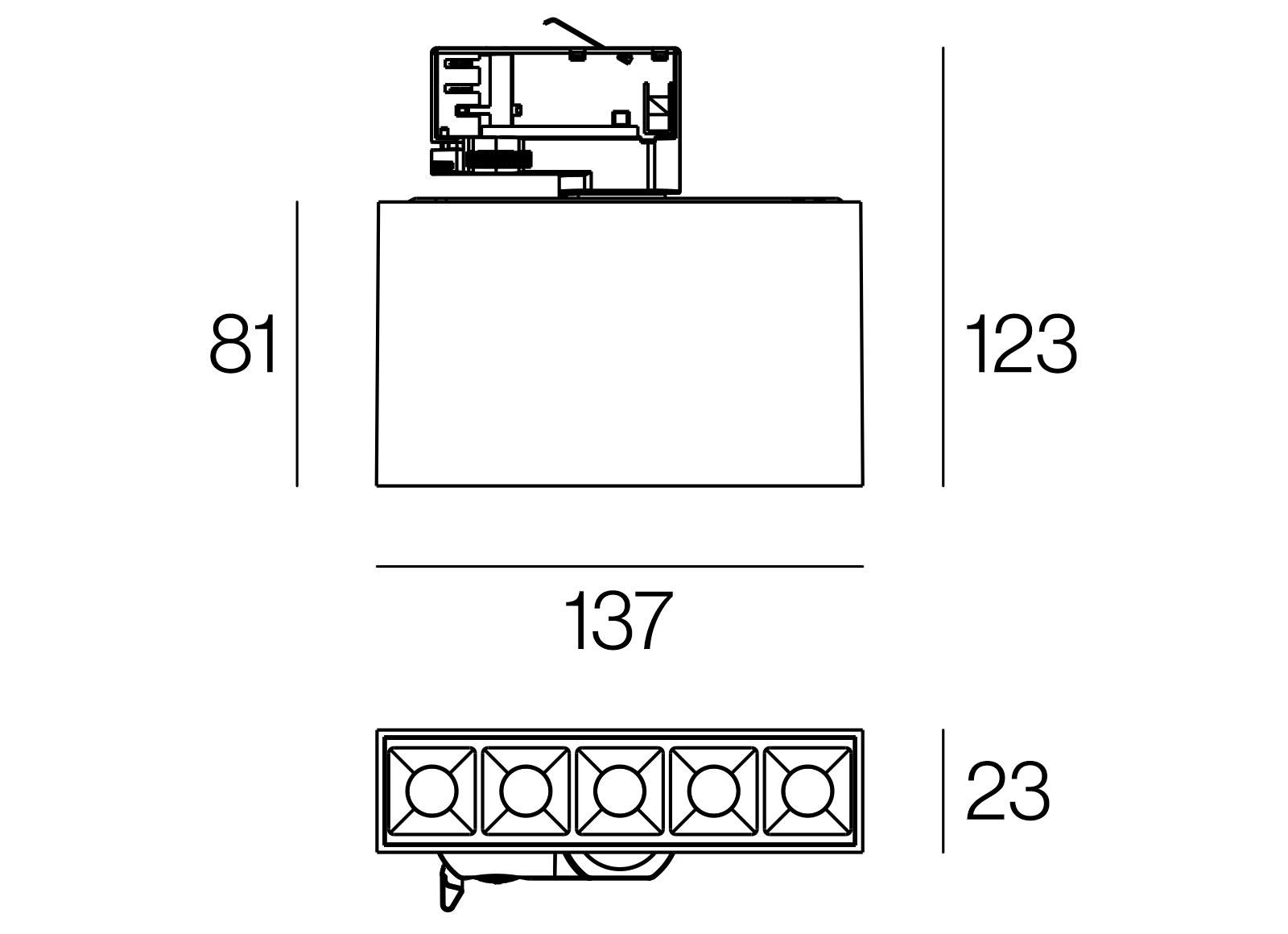

Specification

02.180E05000

Power：10W

Installation method：Track Mounted

Track system：3-circuits/1-circuit

Options：Non-dim,  Phase dim,  0/1-10V,  DALI

Frequency：50/60Hz

LED chip：SMD

Light efficiency：73 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：345° Rotation | 60° Tilting

Light distribution：Direct

Beam angle：22°/36°/45°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

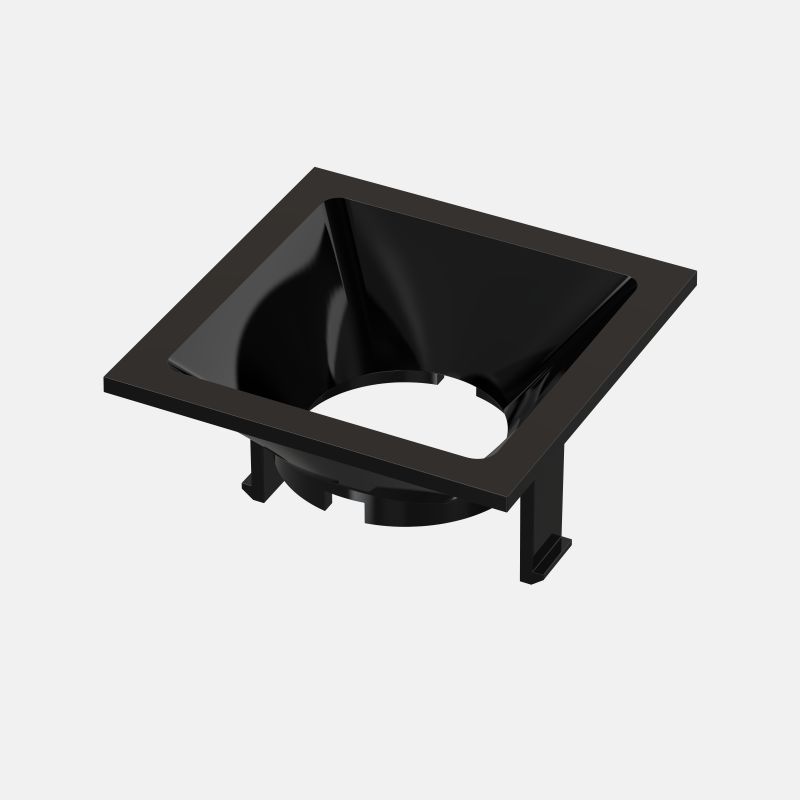

Black

Scenes
Beam angle

22°

36°

45°

Applicable Instructions for 22° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

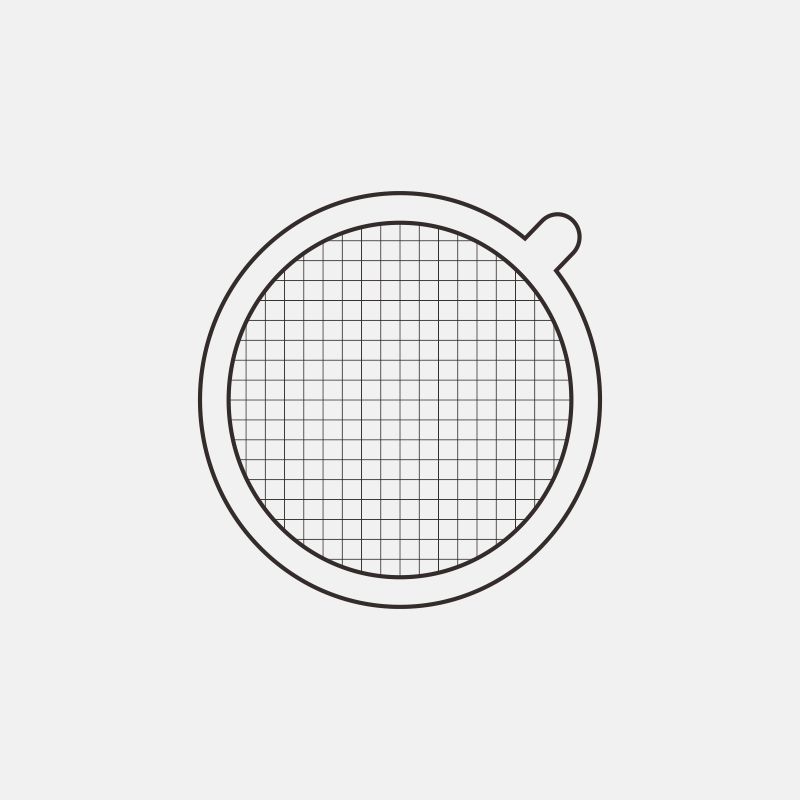

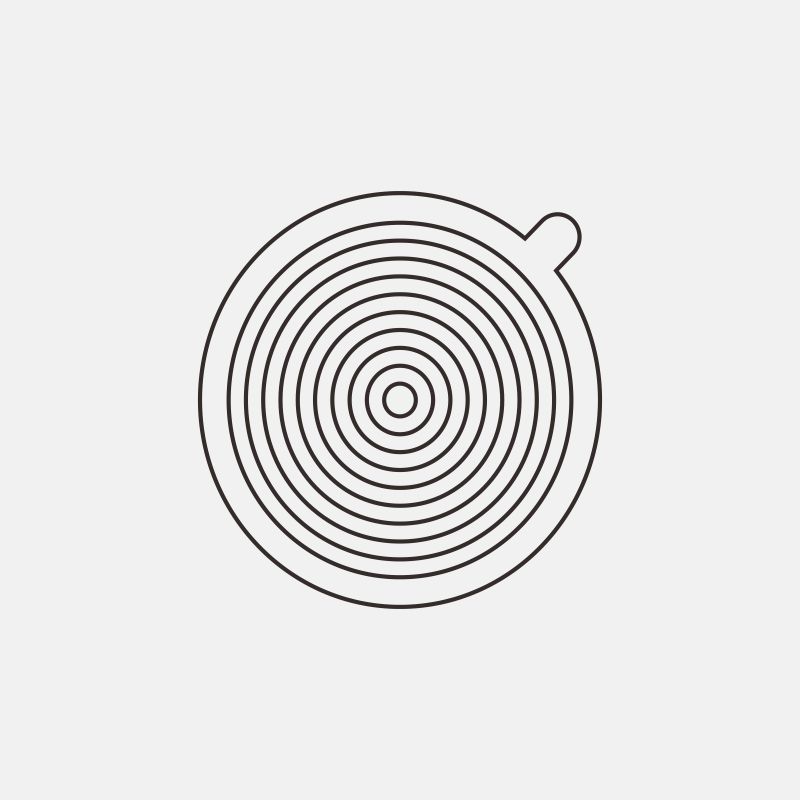

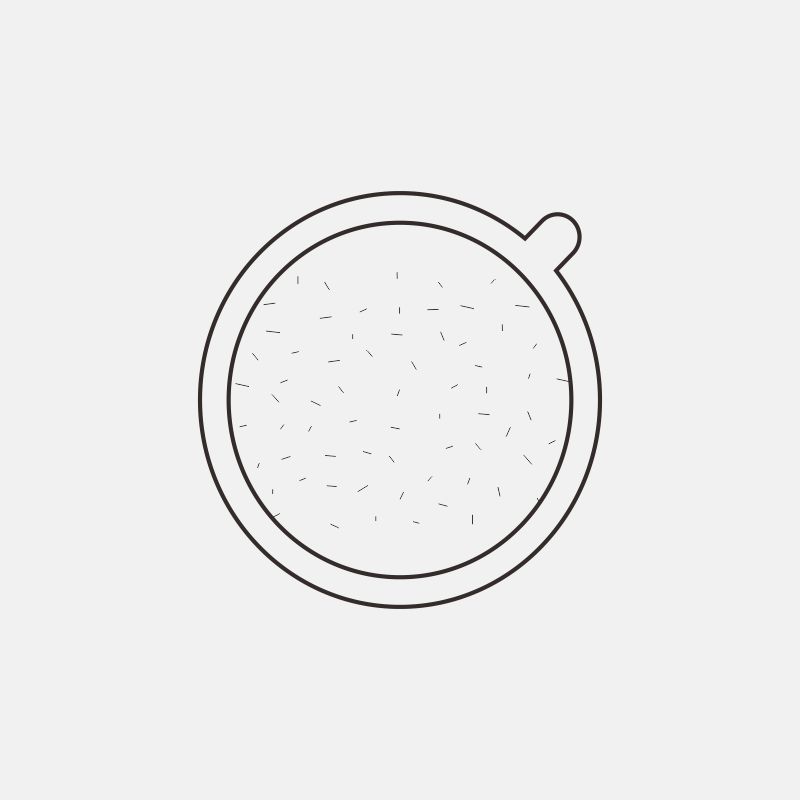

Filter products
Contact Us

Factory Add:

No.13 Lianbao Road,Shengfeng Community,

Xiaolan Town, Zhongshan City.

Tel:

+8676022389158
+86760 22382108

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
