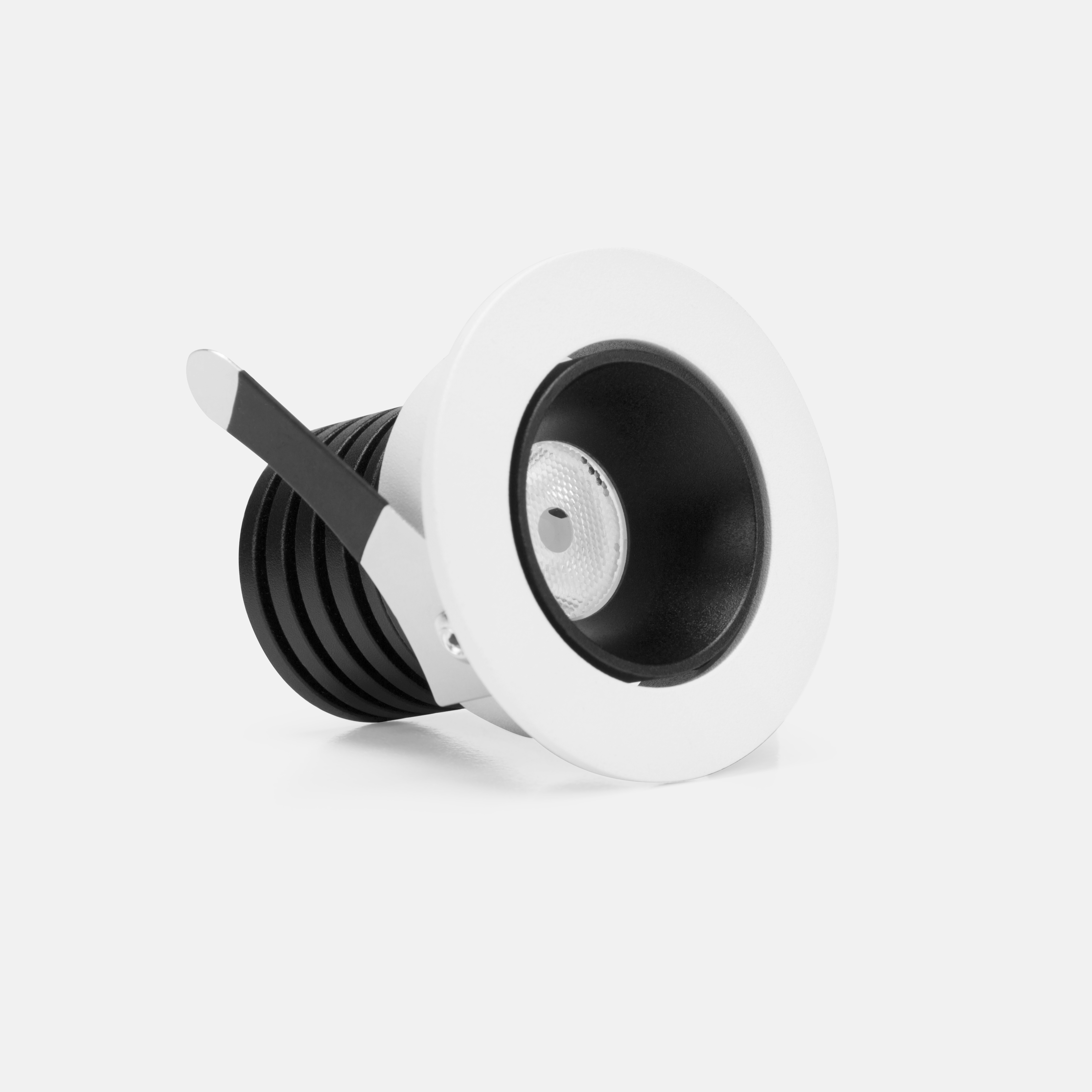

Point
01.001B01000

Point is a new type of embedded intelligent lighting installed on the ceiling, the thickness of the ceiling is at least 65mm; Point uses Preh's 3535 high-quality chip, high luminous flux, high color rendering performance of RA>90, with the product's own direct light and multi-color rendering The color temperature configuration feature makes things more beautiful and highly restores natural colors; it can produce pleasant ambient light in any space; in addition, it is a double-insulated, grounding-free safety class II light, and it is also a smart light . Including wireless dimming technologies such as dali, ble, zugbee, etc., to deal with all smart scenarios.

/ Products / Recessed ceiling light / Point
Specification

01.001B01000

Power：3W

Installation method：Recessed

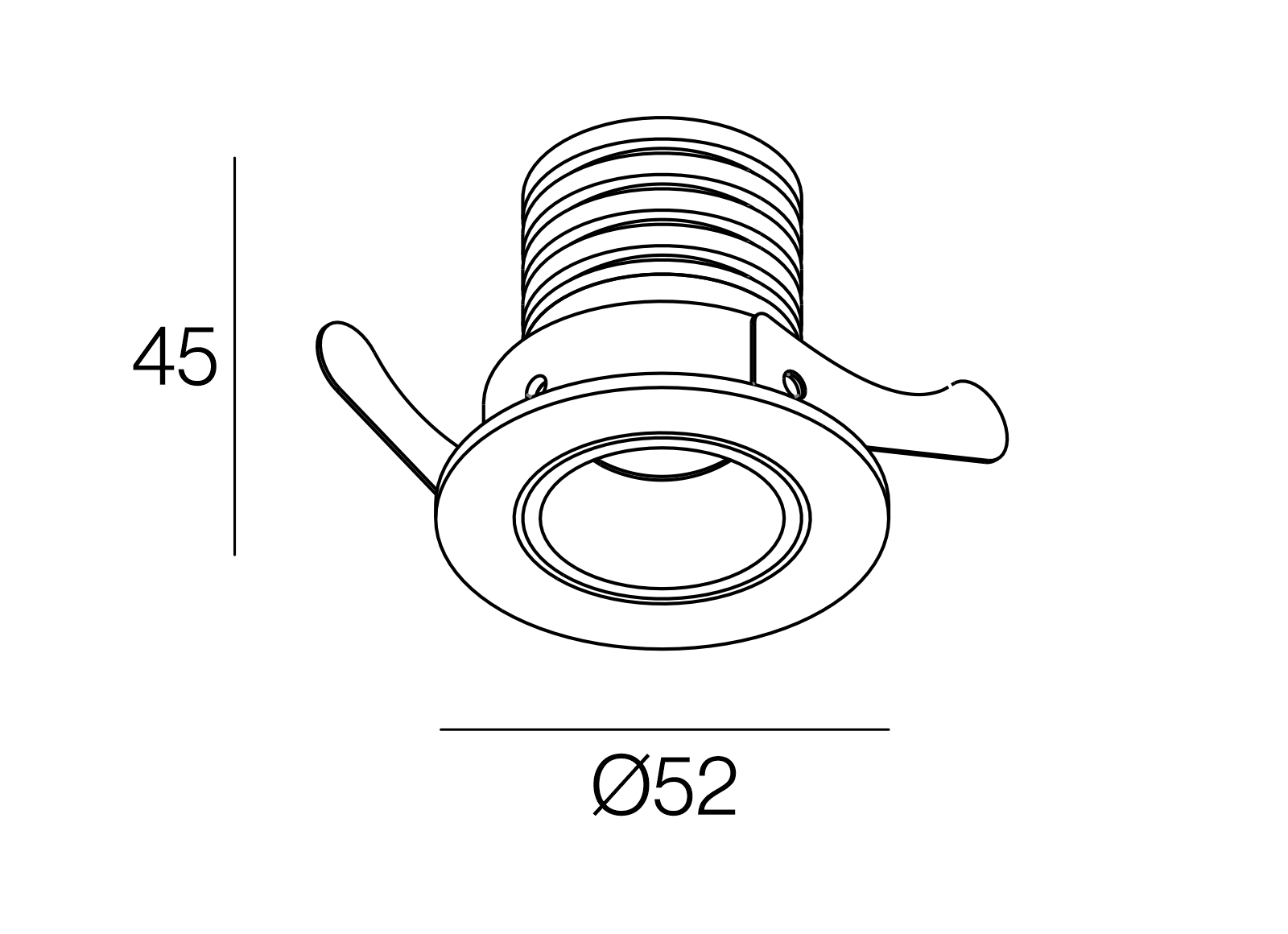

Cut out：φ45mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：61 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：15° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：17°/26°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

White

White+Black

Scenes
Beam angle

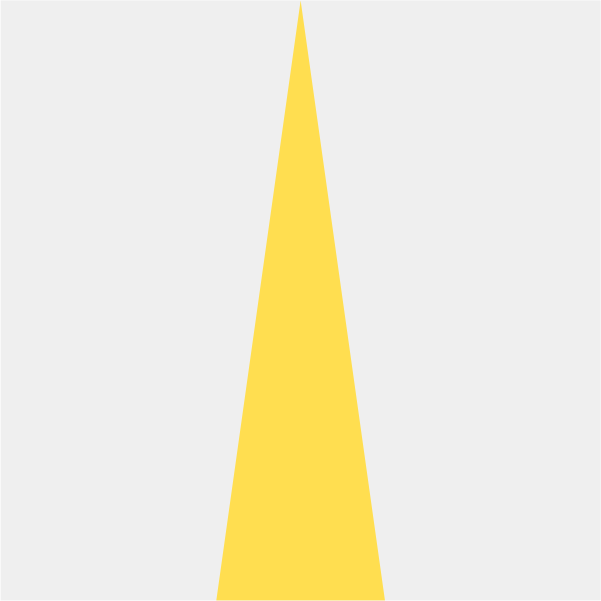

17°

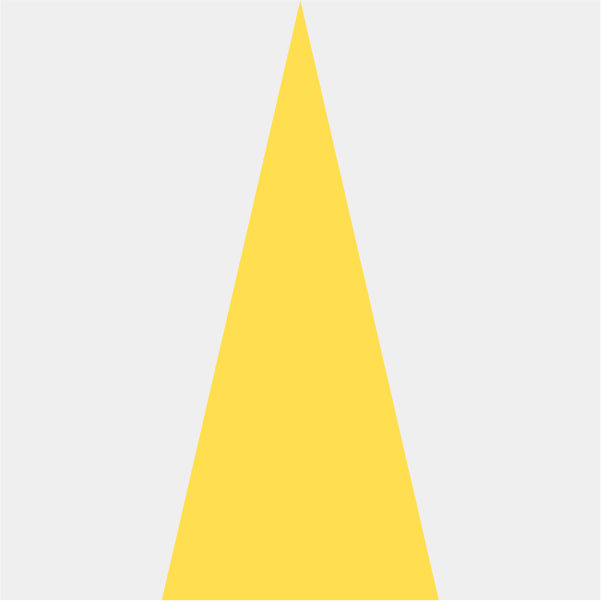

26°

Applicable Instructions for 17° Illumination



This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Filter products
Contact Us

Factory Add:

No.13 Lianbao Road,Shengfeng Community,

Xiaolan Town, Zhongshan City.

Tel:

+8676022389158
+86760 22382108

Lattice01.01A03R

Black

grown

blue

red

gray

This LATTICE offers high performance and excellent visual comfort. Not only thanks tospecial anti-glare lenses, but also thanksto the product's own low glare value UGA < 16 and color rendering RA> 90. LATTICE is usually used for basic lighting and importanlighting in exhibition venues.Provides minimalistic and stylishlighting effects. It also has three beam angles and a variety ofwireless adjustment methods such as BLE, TRIAC and DALI, whichcan meet the lighting needs of various projects.
Specification
Power
56W
Installation method
Built-in/surface mounted
Frequency
50/60Hz
CCT
2700K
CRI
>90
SDCM
<3
LED
COB
lP
lP65
LED life Time
>50,000h - L80 - B10 (Ta 25°C)
Lunmen
549LM
Beam angle
15°
Adjustibility
>NO
Dimmable
Non-DIM
Material
Aluminum
PRODUCT FEATURES
- High quality lens with beam angle 15°,Ensure the uniforrn lighting
- R,RFDMK controller are availablewith more then 7color options and 12 lighting fects
- Excellent weather resistance and UV resistance
- Working termperature:-20~-40 °C
- Storage Temperature:-30-~50 C
