Point

01.001E01000

Point is a new type of embedded intelligent lighting installed on the ceiling, the thickness of the ceiling is at least 65mm; Point uses Preh's 3535 high-quality chip, high luminous flux, high color rendering performance of RA>90, with the product's own direct light and multi-color rendering The color temperature configuration feature makes things more beautiful and highly restores natural colors; it can produce pleasant ambient light in any space; in addition, it is a double-insulated, grounding-free safety class II light, and it is also a smart light . Including wireless dimming technologies such as dali, ble, zugbee, etc., to deal with all smart scenarios.

/ Products / Recessed ceiling light / Point

Specification

01.001E01000

Power：3W

Installation method：Recessed

Cut out：φ25mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：53 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

UGR：＜19

Beam angle：17°/20°/30°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

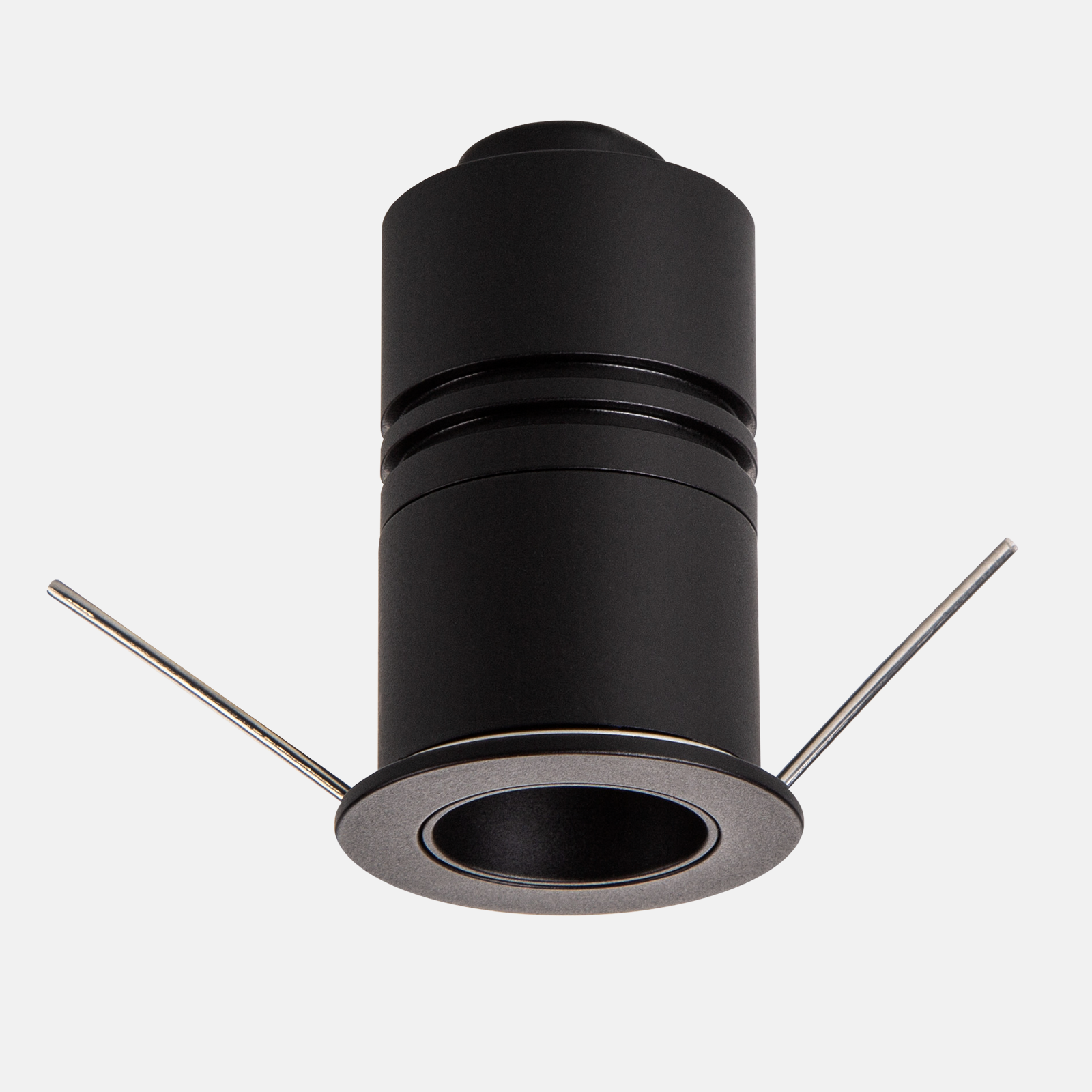

Black

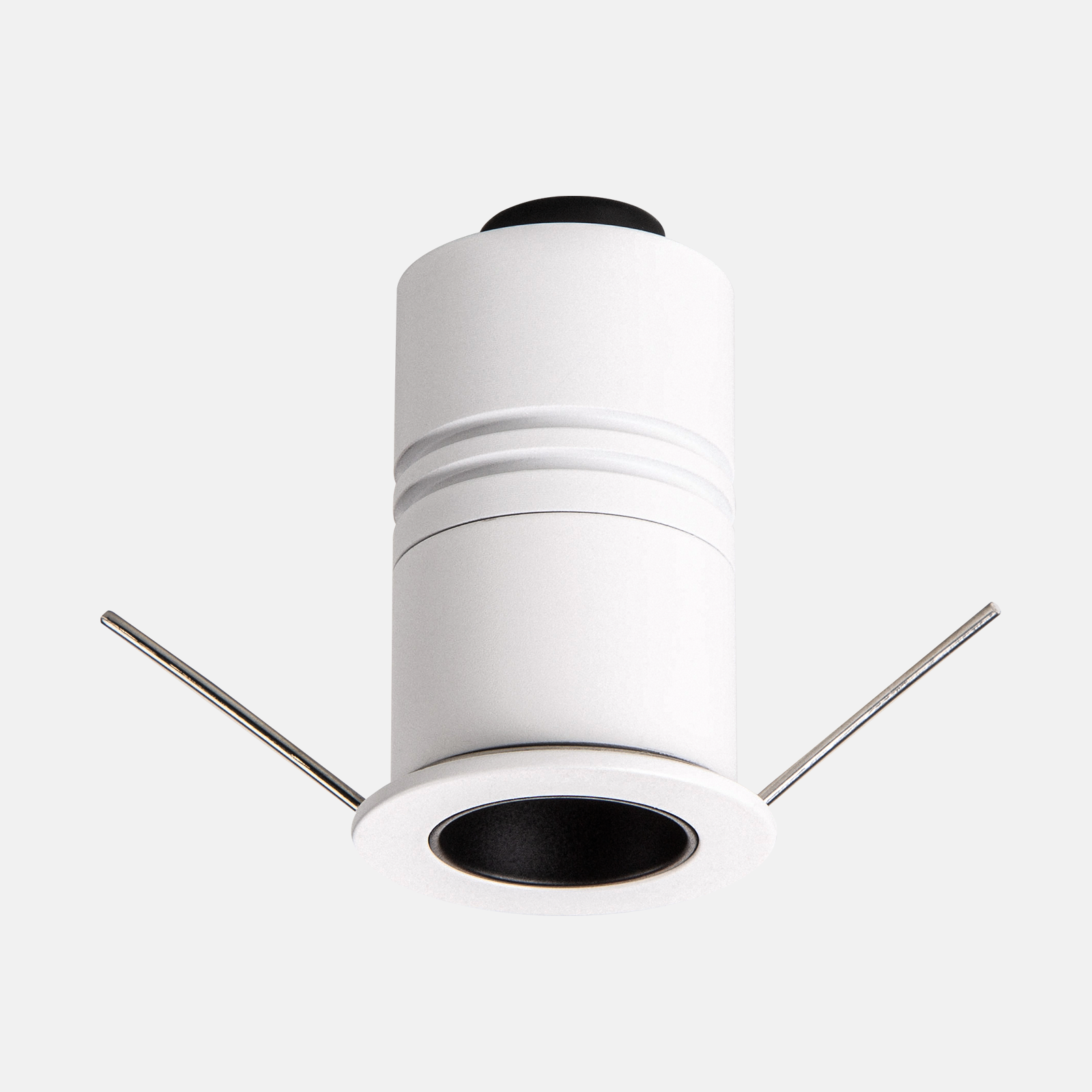

White+Black

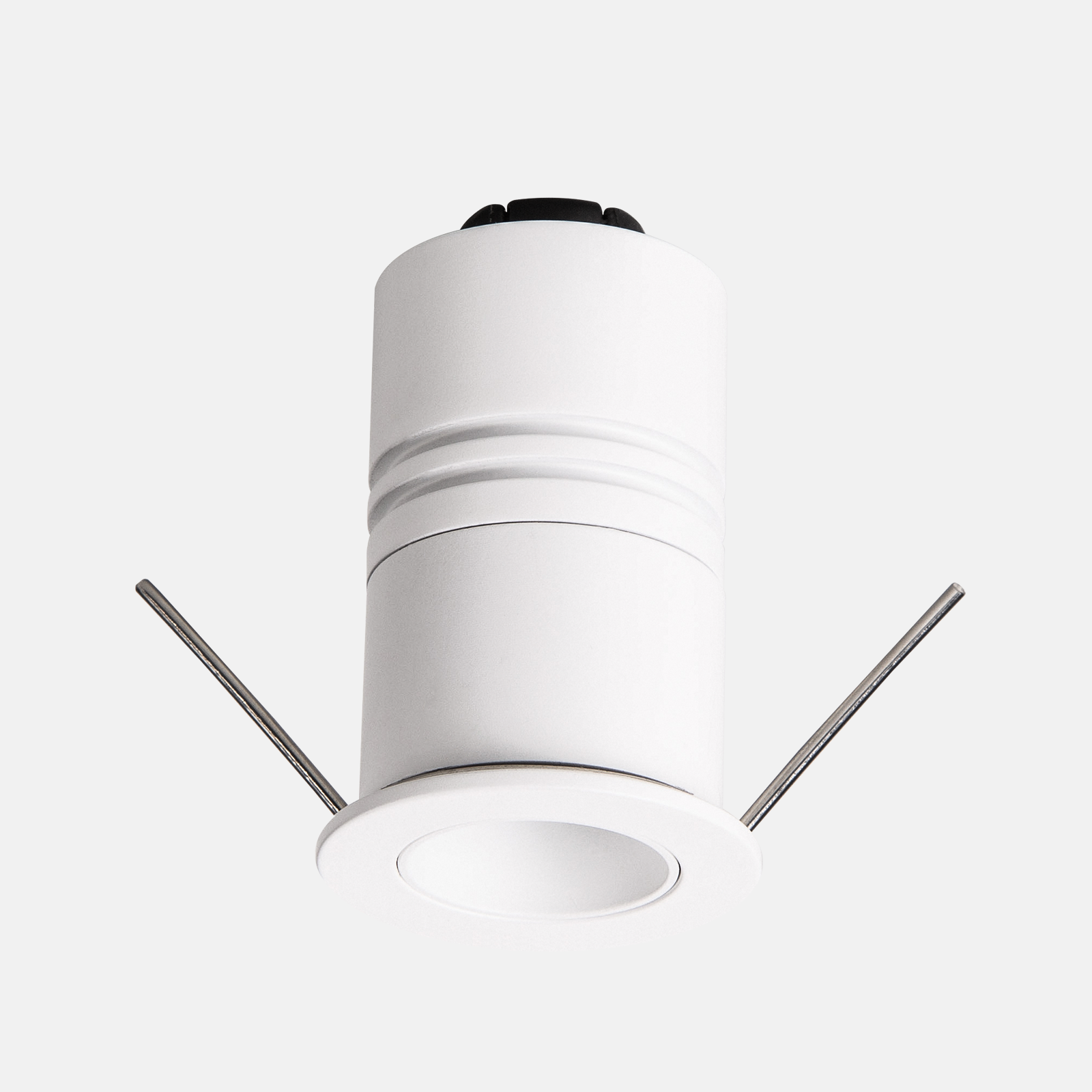

White

White+Red

Accessories
Download

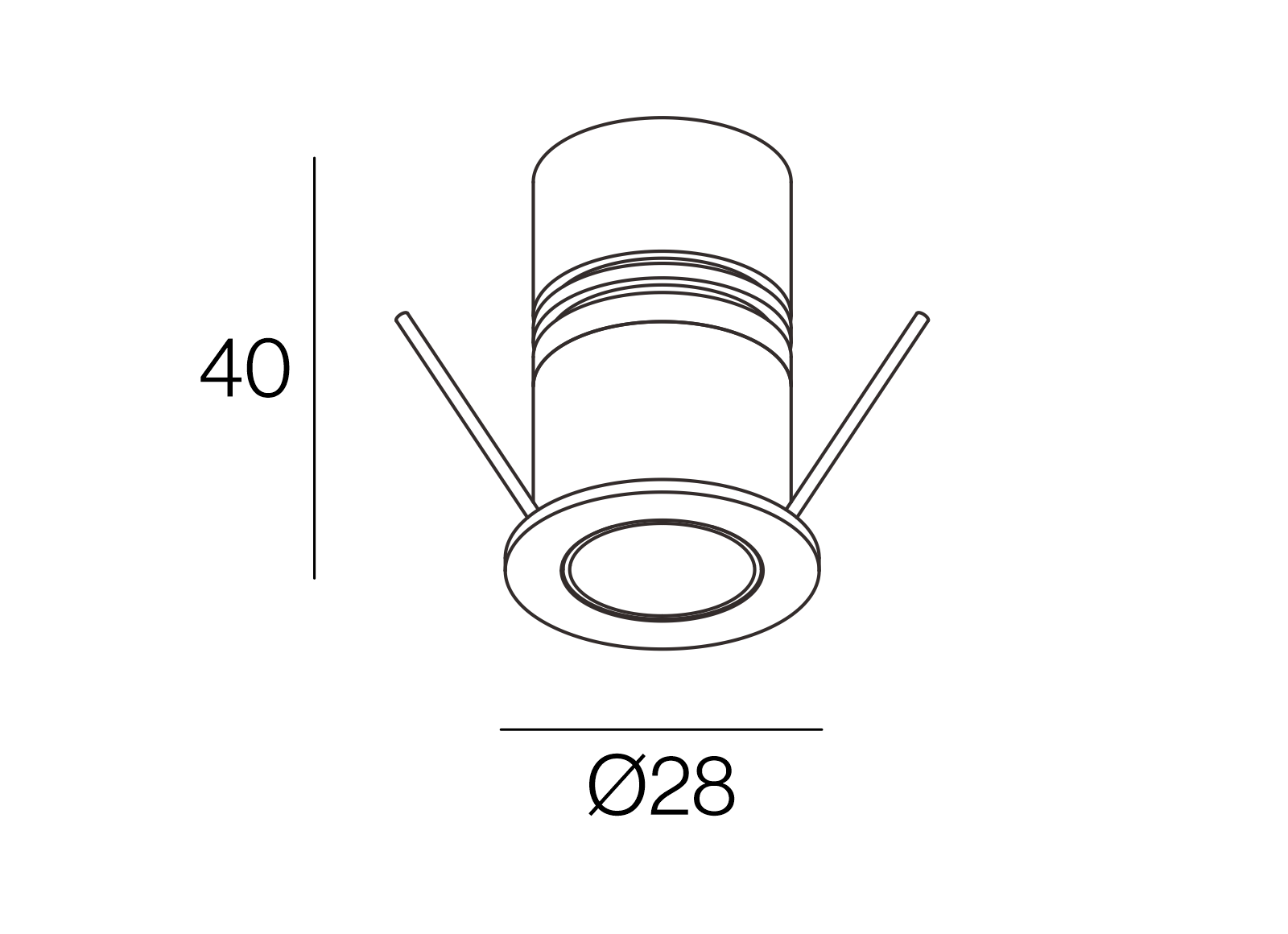

Specifications Drawings Installation instructions

Scenes

Beam angle

17°

20°

30°

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 20° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.

Applicable Instructions for 30° Illumination

This is an angle suitable for basic lighting，
It is used in general lighting scenarios, and the application scenarios are: office
area, store, villa, residence, etc., the same type of life scene.
